Design
For those who seek more than function — bold lines and creative structure for a standout stable look

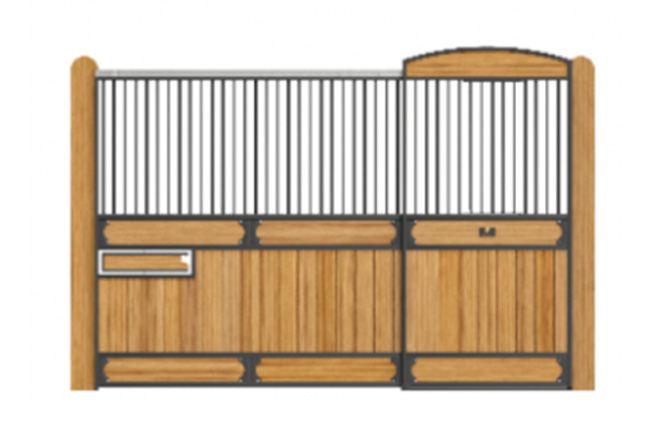

MODERN
- Material: DIN EN ISO 1461 hot-dip galvanised
- Height: Stall height of 2.30 m
- Dimensions: 22 mm grill pipes, 50 mm spacing
- Structure: Fully closed steel frame construction
- Hardwood Infill: 28 mm groove 2 row horizontal boards with plates
- Door: Arched sliding door left or right available. Doorway passage width 1.25 m
- Feeder: Rolling feeder in the fixed section
- Color Options: Powder coated or galvanized options

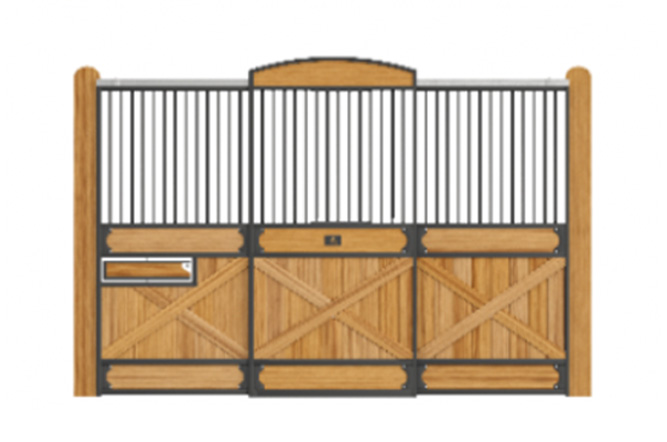

COUNTRY
- Material: DIN EN ISO 1461 hot-dip galvanised
- Height: Stall height of 2.30 m
- Dimensions: 22 mm grill pipes, 50 mm spacing
- Structure: Fully closed steel frame construction
- Hardwood Infill: 28 mm groove with the crossed boards 2 row horizontal boards with plates
- Door: Arched sliding door in the middle. Doorway passage width 1.25 m
- Feeder: Rolling feeder in the fixed section
- Color Options: Powder coated or galvanized options

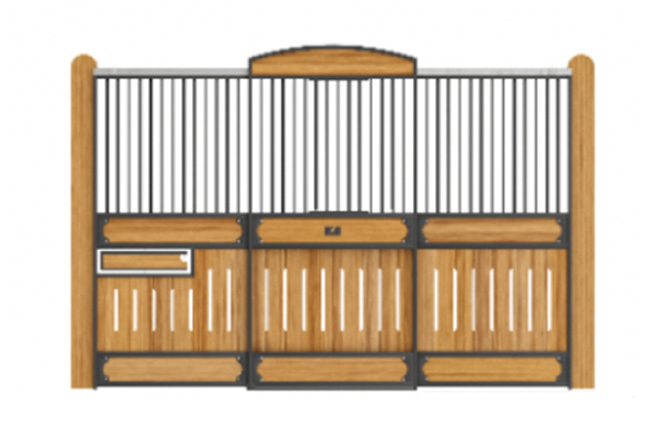

TRADIONAL
- Material: DIN EN ISO 1461 hot-dip galvanised
- Height: Stall height of 2.30 m
- Dimensions: 22 mm grill pipes, 50 mm spacing
- Structure: Fully closed steel frame construction
- Hardwood Infill: 28 mm groove and spring 2 row horizontal boards with plates
- Door: Arched sliding door in the middle. Doorway passage width 1.25 m
- Feeder: Rolling feeder in the fixed section
- Color Options: Powder coated or galvanized options

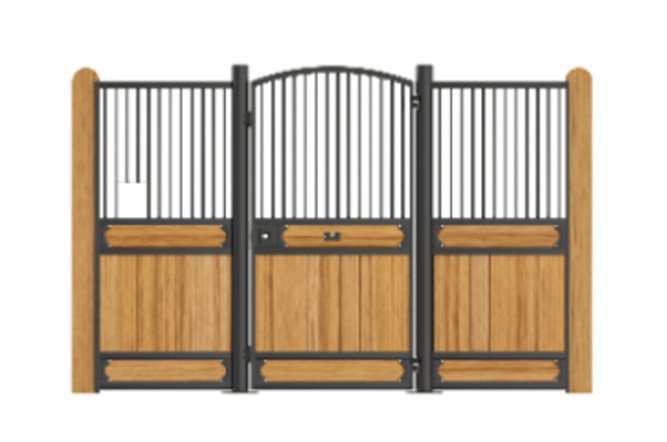

DESIGN-H
- Material: DIN EN ISO 1461 hot-dip galvanised
- Height: Stall height of 2.30 m
- Dimensions: 28 mm grill pipes, 50 mm spacing
- Structure: 130x130 mm circular posts integrated steel frame construction.
- Hardwood Infill: 28 mm groove, 2 row horizontal boards with plates
- Door: Arched hinged door in the middle. Doorway passage width 1.25 m
- Feeder: Feed opening in the fixed section
- Color Options: Powder coated or galvanized options
